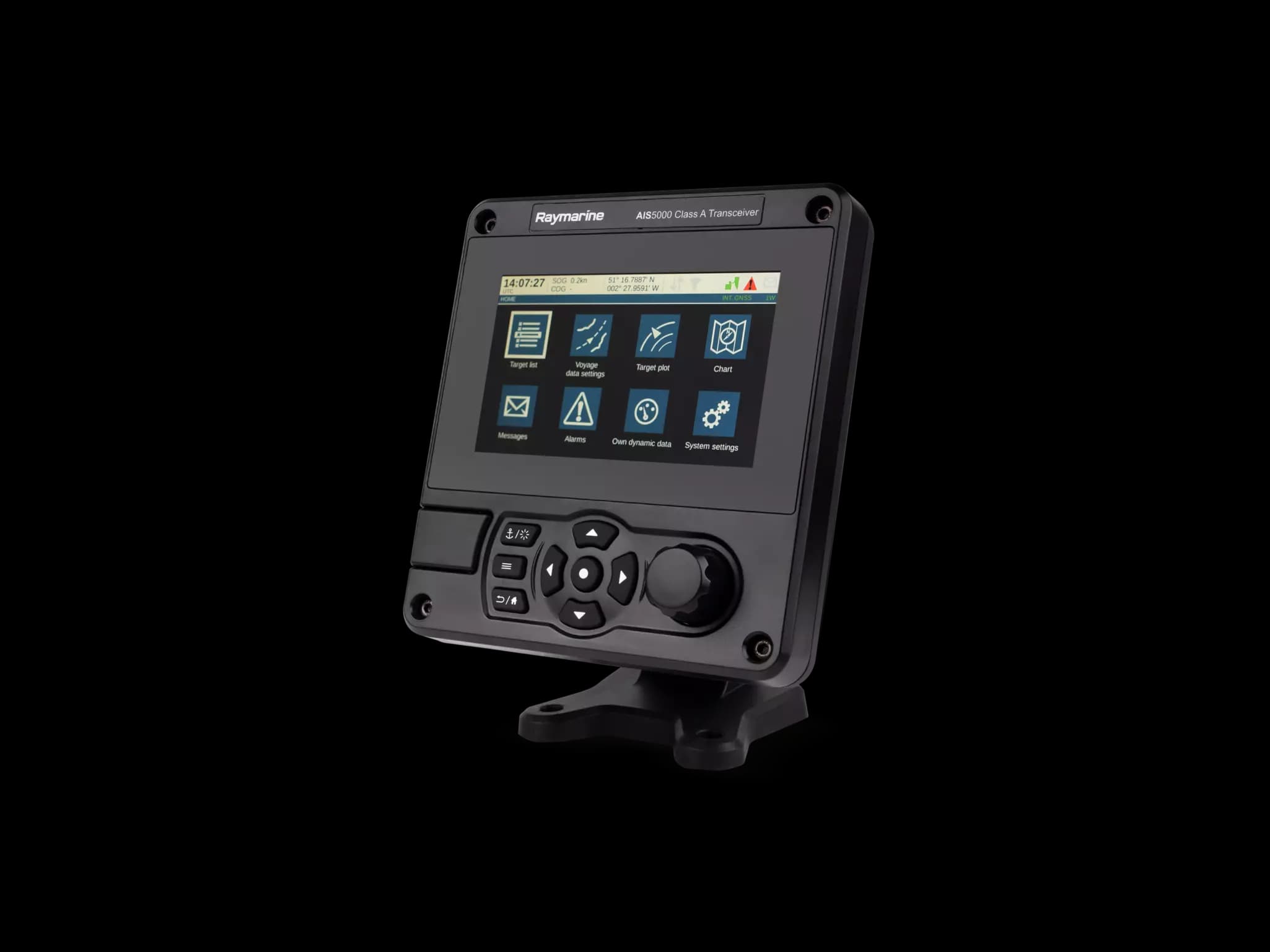

AIS5000 - Class A Transceiver
OEM: E70529
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70529"
Product Details (42)
Dimensions
152 mm × 165 mm × 79 mm
Weight
2 kg
Power supply
12 to 24 VDC
Power consumption
<12 W
VHF antenna connector
Yes
GNSS antenna connector
Yes
Power
Two-pin connector (cable provided)
Serial interfaces and alarm relay
18-pin connector (cable provided)
Serial inputs
14-pin connector (cable provided)
NMEA 2000
1
NMEA 0183 (IEC61162-2) bi-directional ports
3
NMEA 0183 (IEC61162-1) bi-directional ports
3
DGPS correction data input (ITU-R M.823-2)
1
Alarm relay output
1
Wi-Fi
802.11 b/g/n
Pilot Port
1 (optional)
AIS standard
IEC 61993-2 Ed 2.0TU-R M.1371-5CCNR VTT Ed 2.0
Serial data interface standards
IEC 61162-1 Ed 4.0IEC 61162-2 Ed 1.0IEC 61162-3 2008 Ed 1.2
Environmental Standard
IEC 60945 Ed 4.0
GNSS performance standard
IEC 61108-1 Ed 2.0IEC 61108-2 Ed 1.0
Product safety
IEC 60945 Ed 4.0
Transmitter
1
Receiver
3
Frequency
156.025 MHz to 162.025 MHz
Output Power
1 W or 12.5 W (automatic)
Channel Bandwidth
25 kHz
Channel Step
25 kHz
Modulation Modes
CMSK-TDMA
Bit Rate
9,600 bits/sec
Receiver Sensitivity
-107 dBm @ 20% PER
Channels
72
GNSS systems
Supports parallel dual mode operation from GPS and GLONASS
IEC61108-1
Compliant
IEC61108-2
Compliant
GNSS antenna
Supplied
Display
5” 800 × 480 full color LCD display
Encoder
Rotary encoder for selection and entry
Keys
Four menu keys and four direction keys
MicroSD
microSD™ slot for software updates and charts
Waterproof
IPx6 and IPx7-rated for water ingress
IEC 60945
‘Protected’ category
Operating Temperature
-15°c to +55°c
