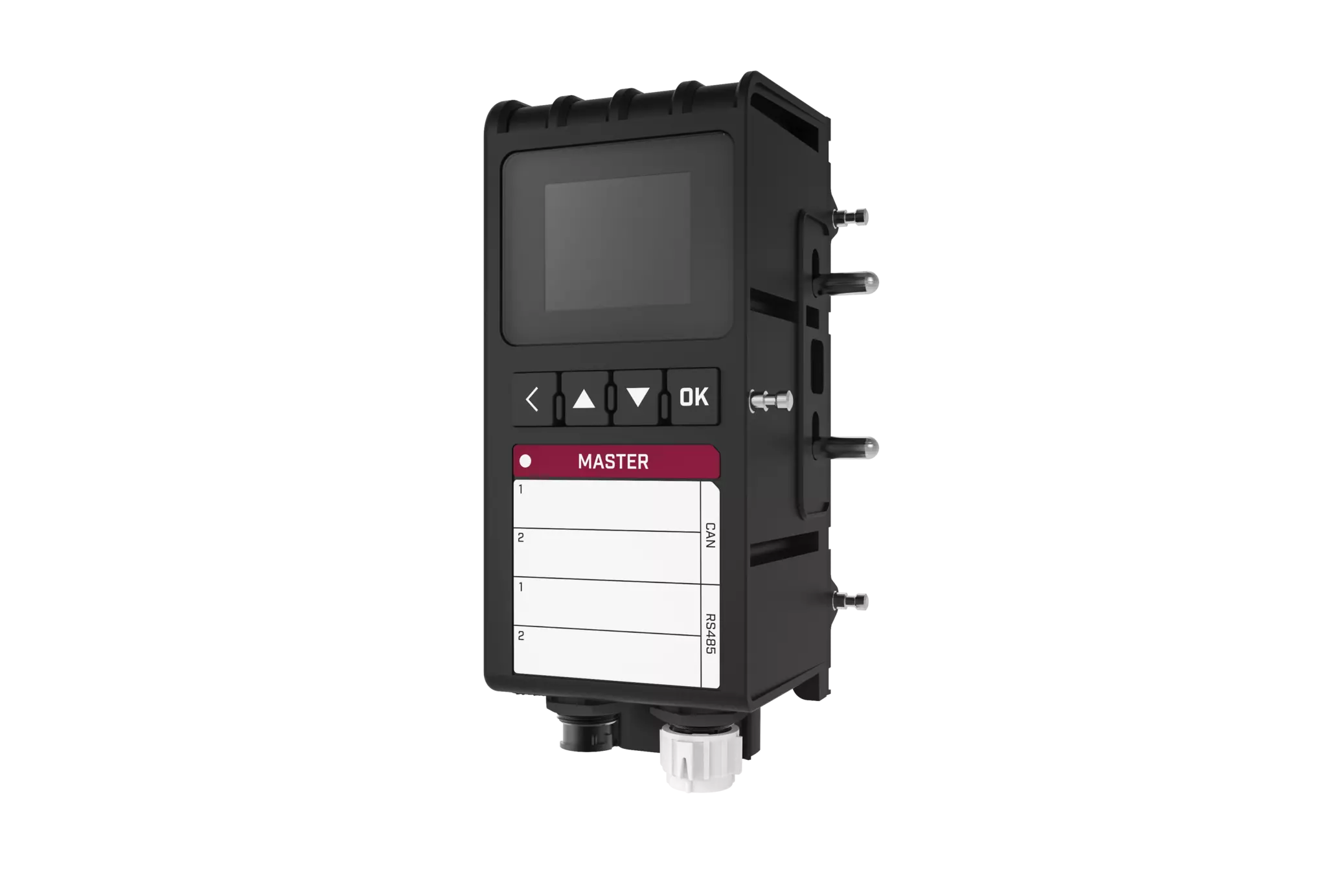

YachtSense Master Module
OEM: E70592
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70592"
Product Details (15)
Nominal supply voltage
12 V dc / 24 V dc
Operating voltage range
8 V dc to 32 V dc
Module current draw
350 mA
Network (control)
1 x RayNet type SeaTalkhs™ connector 10/100/1,000 Mbits/s
SeaTalkng ® / NMEA 2000
1 x SeaTalkng ® connector
CANBUS / Serial
• 2 x J1939 connections via 16–pin Molex MX150L connector• 2 x RS-485 connections via 16–pin Molex MX150L connector
Module Dimensions: H/W/D (not
including busbars):
165 mm (6.50 in) x 81.00 mm (3.19 in) x 75.50 mm (2.97 in)
Weight
0.37 Kg (0.78 lb)
Size (diagonal)
1.8 in
Type
TFT LCD (LED backlight)
Color depth
RGB
Resolution
128 x 160
Ratio
5:4
Illumination
225
Viewing Angle
L: 65° / R: 65° / T: 40° / B 65°
