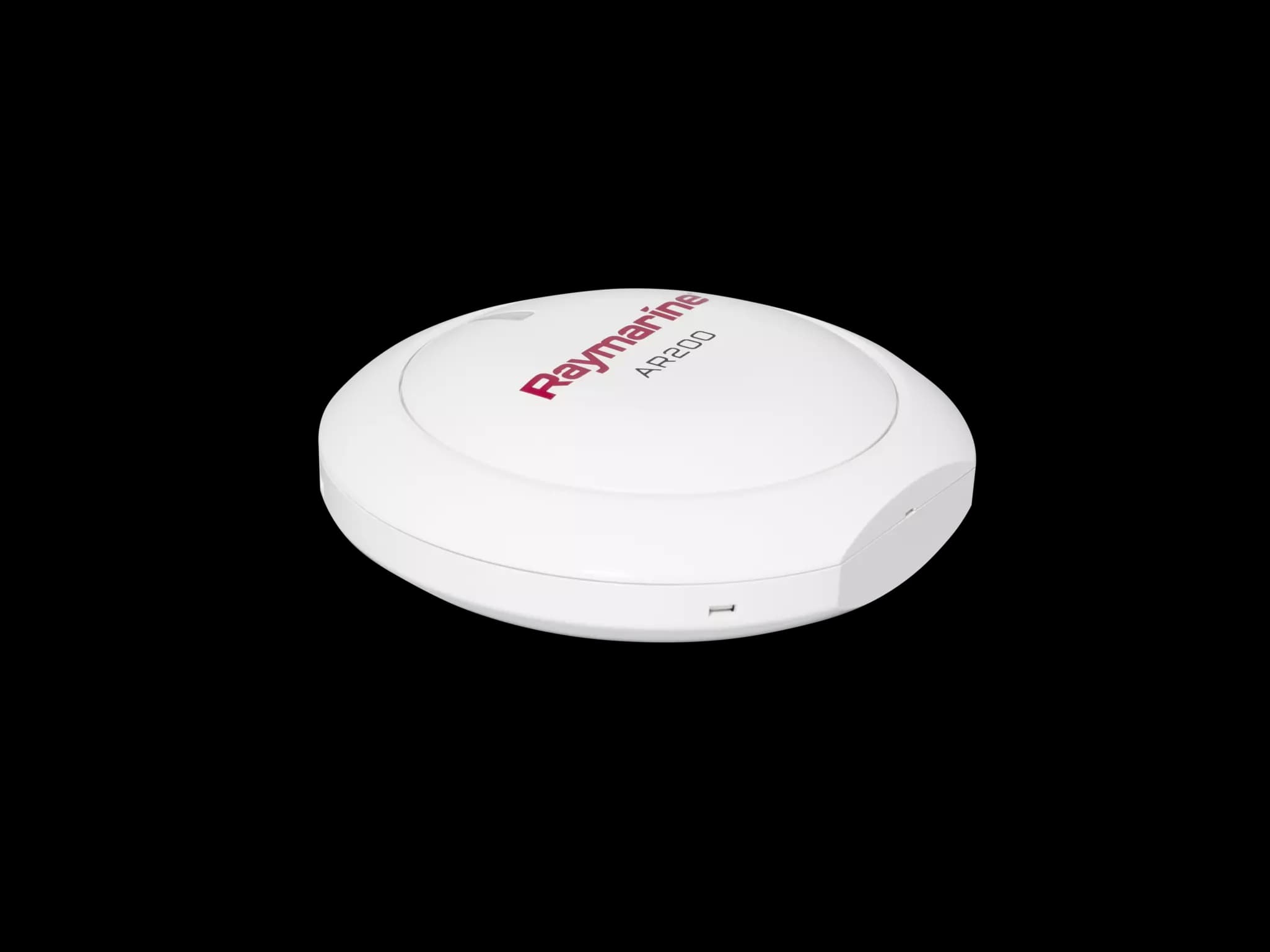

AR200
OEM: E70537
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
DefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
Fisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
PartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
Searching for: "Raymarine E70537"
Product Details (29)
Geodetic Datum
WGS-84
Satellite Differential Type (SBAS)
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS ready (Japan)
Channels
Simultaneously track up to 28 satellites
Antenna
Internal
GNSS (GPS) satellite system compatibility
GPS, GLONASS, Galileo ready, Beidou ready
Sensitivity
Cold start = -147 dBm, Re-acquisition = -160 dBm, Tracking = -164 dBm
Signal acquisition
Automatic
Differential acquisition
Automatic
Operating frequency
1574 MHz to 1605 MHz
Update rate
10 Hz
Position accuracy with SBAS (95%)
< 5 m
Time to first fix from hot start
< 45 seconds
Time to first fix from cold start
< 2 minutes (< 60 seconds typical)
Position accuracy without SBAS (95%)
< 15 m
Speed accuracy (95%)
< 0.3 kt
Magnetic compass accuracy
Static = ≤ 1° RMS, Dynamic = ≤ 3° RMS
AHRS (Attitude Heading Reference Sensor)
3-Axis digital accelerometer, 3-Axis digital compass, 3-Axis MEMS Gyro digital angular rate sensor
Heading, Pitch, Roll and Rate of Turn update rate
10 Hz
Pitch, Roll and Yaw accuracy
≤ 1°
Waterproof rating
IPx6, IPx7
Storage temperature range
-25° C to +70° C (-13° F to 158° F)
Operating temperature range
-25 ° C to +55° C (-13° F to 131° F)
Relative humidity
0.93
Standards
EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance Level 2, RoHS Directive 2011/65/EU, WEEE Directive: 2012/19/EU
Dimensions
Diameter: 108.48 mm (4.27 in), Depth: 41.57 mm (1.64 in)
Operating voltage range
9 V dc to 16 V dc (protected up to 32 V dc)
Power consumption
30 mA Max
Nominal supply voltage
12 V dc (Supplied by the SeaTalkng network)
LEN (NMEA 2000 Load Equivalency Number)
1
